BUSBAR CHAMBER
Product Overview

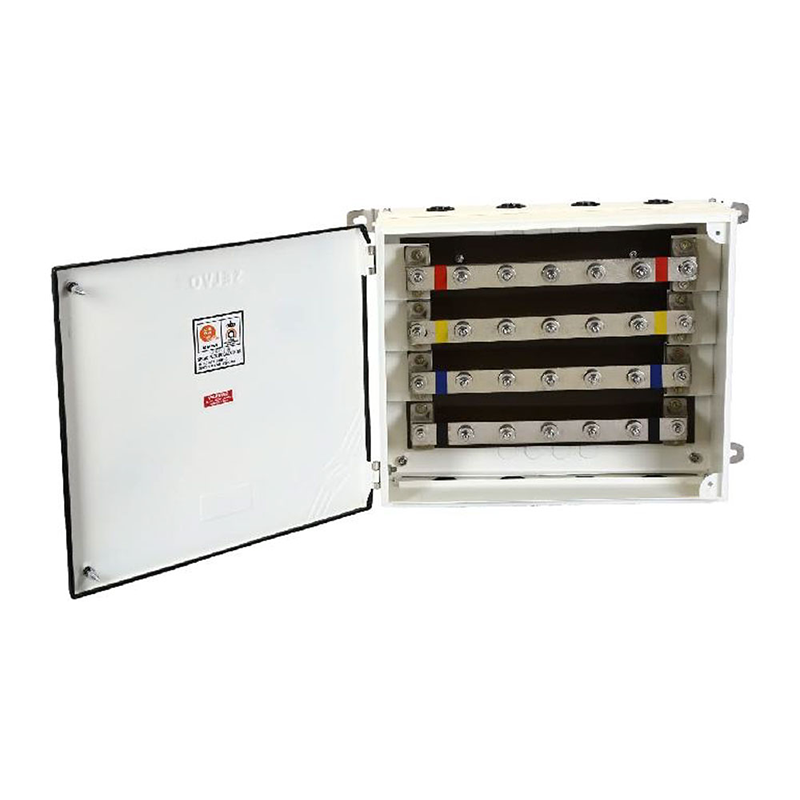

Busbar Chambers are designed for safe and efficient power distribution in industrial, commercial, and electrical panel applications. Manufactured using CRCA steel enclosure with high conductivity copper/aluminium busbars, these chambers ensure reliable current carrying capacity, low heat rise, and long service life.
Suitable for:
• Power Distribution Panels
• LT Switchboards
• Industrial Plants
• Commercial Buildings
• OEM Electrical Assemblies
Product Range
| Model Rating | Pole | Busbar Material | Enclosure Thickness | Standard |
|---|---|---|---|---|
| 100A | 4 Pole | Copper / Aluminium | As per requirement (CRCA) | IEC 61439 |
| 200A | 4 Pole | Copper / Aluminium | As per requirement (CRCA) | IEC 61439 |
| 400A | 4 Pole | Copper / Aluminium | As per requirement (CRCA) | IEC 61439 |
| 630A | 4 Pole | Copper / Aluminium | As per requirement (CRCA) | IEC 61439 |
| Model Rating | Pole | Busbar Material | Enclosure Thickness | Standard |
|---|---|---|---|---|
| 800A | 4 Pole | Copper / Aluminium | As per requirement (CRCA) | IEC 61439 |
| Parameter | Specification |
|---|---|
| Rated Voltage | Up to 690V AC |
| Frequency | 50/60 Hz |
| Current Rating | 100A – 800A |
| Short Circuit Withstand | As per IEC 61439 |
| Degree of Protection | IP31 / IP54 (Optional) |
| Busbar Material | ETP Grade Copper / EC Grade Aluminium |
| Surface Finish | Powder Coated RAL 7032 / 7035 |
| Neutral | Fully Rated Neutral |
| Earthing | Integrated Earth Continuity |
| Mounting Type | Wall / Surface Mounted |
| Operating Temperature | Suitable for Tropical Conditions |
| Insulation | Heat Resistant Insulators |
| Corrosion Resistance | High Durability Powder Coating |
Testing & Quality Checks
Each Busbar Chamber undergoes:
• Visual Inspection
• Mechanical Fitment Check
• Continuity Test
• Insulation Resistance Test
• Dimensional Verification
• Busbar Tightness Check
Key Features
• Compact & Robust Design
• High Conductivity Busbars
• Low Temperature Rise
• Easy Cable Termination
• Safe & Reliable Power Distribution
• Maintenance Friendly Construction
• Suitable for Continuous Duty
• Export Quality Finish
Compliance Standards
IEC 61439 is commonly used for low-voltage switchgear and busbar assemblies in export markets. Typical busbar chamber constructions include CRCA steel enclosures, copper busbars, and IP-rated protection systems.
Available Customization
• Copper / Aluminium Busbars
• Indoor / Outdoor Type
• Custom Dimensions
• Higher IP Protection
• Tinned Copper Busbars
• OEM Branding Available
Applications
• Electrical Distribution Systems
• Generator Synchronization Panels
• Industrial Power Distribution
• Commercial Buildings
• Infrastructure Projects
• OEM Panel Builders
